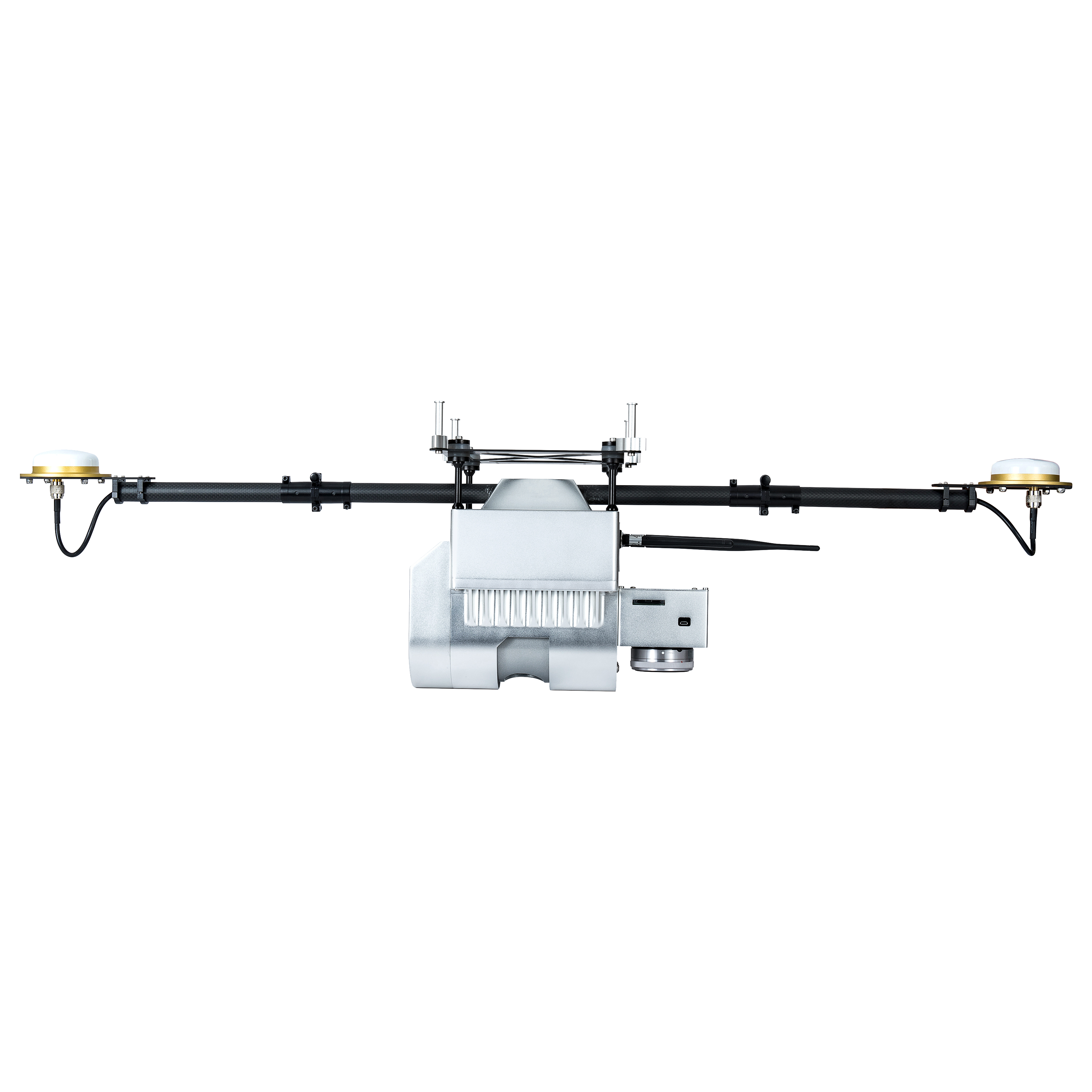

LiAir Standard – STD 32E

STD 32E

Laser Sensor

Velodyne HDL-32E

Laser Classification

Class 1 Eye-Safe

Range Accuracy (cm)

2

Max. Range (m)

100

# of Returns

2

Scan Rate (khz)

700

Sys. Relative Accuracy (cm)

5

Sys. Absolute Accuracy (cm)

12

IMU Type

MEMS

POS Ssytem Performance
[Input Range (deg/sec)/Gyro bias instability (deg/h)/Accelerometer bias instability (mg)]

250/20/2

Onboard Storage (gigabyte)

64

Ports Available

USB

Weight (gram)

3500

Main Dimensions (mm)

285.28*150*207.2

Max. Power Consumption (w)

50

Operating Voltage (v)

19 ~ 30

Operating Temperature (°c)

-10 ~ 40

Typ. Ground Speed (m/s)

4

Max. Ground Speed (m/s)

10

GPS Base Station (GVI)

Included (GVI Proprietary)

GPS Module

Included

Data Acquisition Control/Raw Converstion Software

Include (GVI LiAcquire)

Mounting Kit

Included
